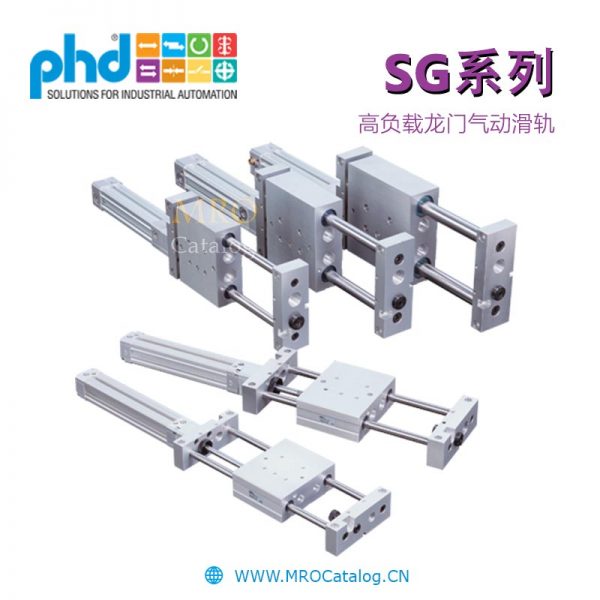

SG系列高负荷龙门气动滑轨美国PHD High Load Gantry Pneumatic Slide

累计销量：

累计评价：

PHD 动力直线滑轨包括推进器和龙门式滑轨，并使用空气或电力源操作PHD提供了12种不同风格的导向直线滑梯，设计用于处理从几盎司到300磅不等的负载这些自动化设备利用不同的轴承类型，可以提供高精度、力和负载承载能力，以满足您的工业制造要求PHD提供电动和气动滑轨，从紧凑型到龙门式，行程长，以满足伸展和传输自动化系统的应用。
—-
PHD powered linear slides include thruster and gantry styles, and operate using air or electric power sources. PHD offers more than 12 different styles of guided linear slides designed to handle loads ranging from a few ounces up to 300 pounds. These automation devices utilize different bearing types that can provide high precision, force, and loads carrying capabilities to fit your industrial manufacturing requirements. PHD offers electric and pneumatic slides ranging from compact to gantry styles with long travels to fulfill the reach and transfer automation system applications.

High Load Gantry Pneumatic Slide美国PHDSG系列高负荷龙门气动滑轨

具有坚固的设计，能够承受高负荷和低挠度。可选的超大导向轴可与TC套管最大刚性。博士的CV气缸驱动这个执行机构的超长寿命与广泛的控制和开关配件。SG系列直线滑轨设计用于平稳地搬运高达500磅至3英尺的负载。
Feature a rugged design capable of high loads with low deflection. Optional oversize guide shafts are available with TC bushings for maximum rigidity. PHD’s CV Cylinder powers this actuator for extra long life with a wide range of controls and switch accessories. Series SG Linear Slides are designed for smoothly handling loads of up to 500 lbs up to three feet in travel.

概述

SG系列高负载龙门气动滑轨具有坚固的设计，能够承受高负载和低偏转。可选的超大导轴可与TC套管最大刚性。博士的CV气缸驱动这个执行机构的超长寿命与广泛的控制和开关配件。SG系列滑轨设计用于平稳地搬运高达500磅至3英尺的负载。

Series SG High Load Gantry Pneumatic Slides feature a rugged design capable of high loads with low deflection. Optional oversize guide shafts are available with TC bushings for maximum rigidity. PHD’s CV Cylinder powers this actuator for extra long life with a wide range of controls and switch accessories. Series SG Slides are designed for smoothly handling loads of up to 500 lbs up to three feet in travel.
